UI / Element-Based Assertions

UI / Element-Based Assertions are strictly designed to validate the physical presence, visibility, quantity, and aesthetic styling of specific DOM elements on a web page.

These assertions guarantee that your application's architecture renders correctly and provides visual feedback exactly as expected.

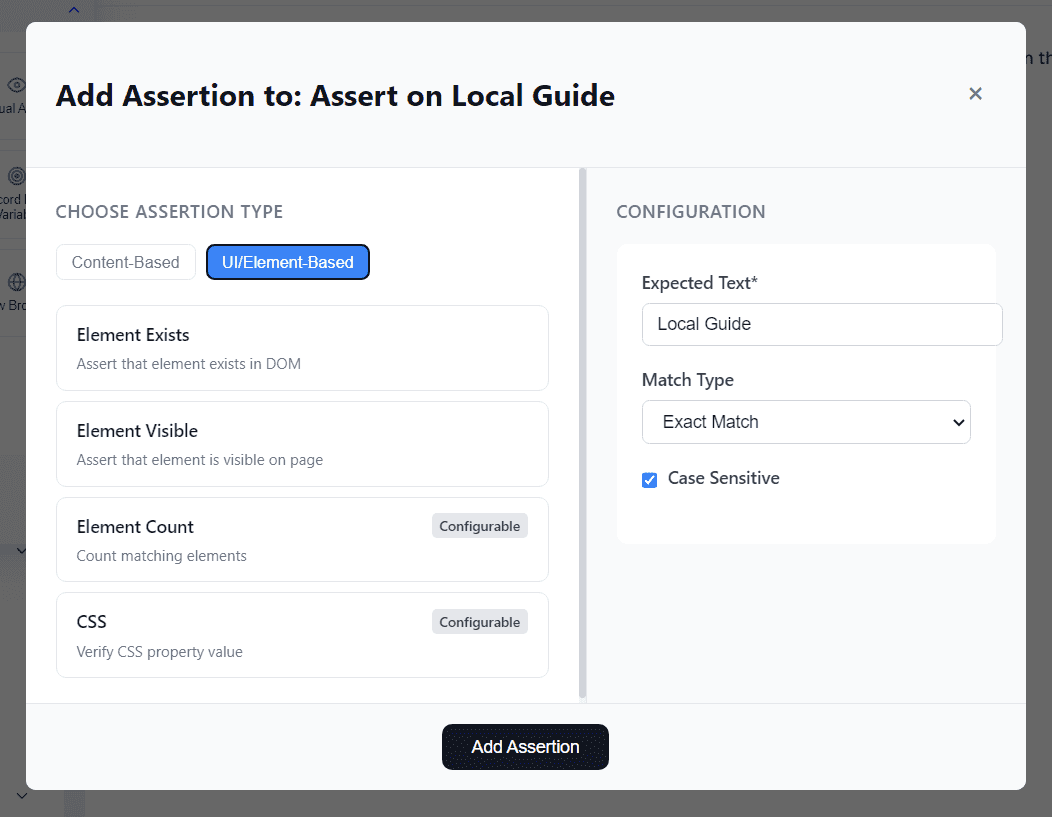

UI Assertions Menu

Available UI Assertion Types

Robonito supports four primary UI assertion categories:

1. Element Exists

Validates that a specific HTML element physically exists within the document's DOM structure.

  • Behavior: This assertion passes if the element is in the code natively, regardless of whether it is currently visible on the screen or hidden via CSS (e.g., display: none).
  • Use Case: Ensuring that a hidden modal container or tracking script tag was successfully injected by the server.

2. Element Visible

Validates that a specific DOM element is actively rendering and visible to the end-user.

  • Behavior: Fails if the element exists in the code but is hidden from the user viewport.
  • Use Case: Confirming that a critical "Submit" button or a red validation error banner is actually visible before the test attempts to interact with it.

3. Element Count

Validates the exact mathematical number of structural elements matching your selected CSS/XPath selector.

  • Configuration: You must provide an Expected Count Value (Integer).
  • Use Case: Verifying that a search result grid dynamically rendered exactly 12 product cards, or that a dropdown menu contains 5 distinct selectable items.

4. CSS Assertion

Validates the dynamic output value of a specific CSS stylistic property attached to an element.

  • Configuration:
    • CSS Property Name: The CSS key (e.g., background-color, font-size, z-index).
    • Expected Property Value: The expected CSS computed result (e.g., rgb(255, 0, 0), 16px).
  • Use Case: Ensuring precise aesthetic rules, such as verifying that an input border turns red (#FF0000) during a form validation error.

Configuring Matching Rules

When configuring your UI assertion logic, Robonito allows you to define precision rules:

  • Expected Value: The explicit condition you are checking against.
  • Match Type: Choose between an Exact Match (must be perfect) or a Partial Match (contains the value).
  • Case Sensitive: Toggle strict capitalization enforcement.

Adding the Assertion

To attach a UI validation to your test:

  1. Review your chosen assertion type and the associated configuration settings.
  2. Click the Add Assertion button.
  3. The assertion is now bound to the active test step. During execution, Robonito will evaluate the DOM exactly at that moment and log a definitive Pass or Fail timeline status in your test report.
