Recording a Web Test Case in Robonito

Recording is the fastest way to create a Web (UI) test case in Robonito. It captures real user interactions in a browser and automatically converts them into structured, executable test steps.

This guide covers the complete recording workflow—from starting the recording to using automation tools and assertions.

Start Recording

To begin recording a web test case:

  1. Open an existing Web Test Case or create a new one.
  2. Click the Record button. Record
  3. The Configure Web Test Case Launch Options dialog appears. Configure Web Test Case

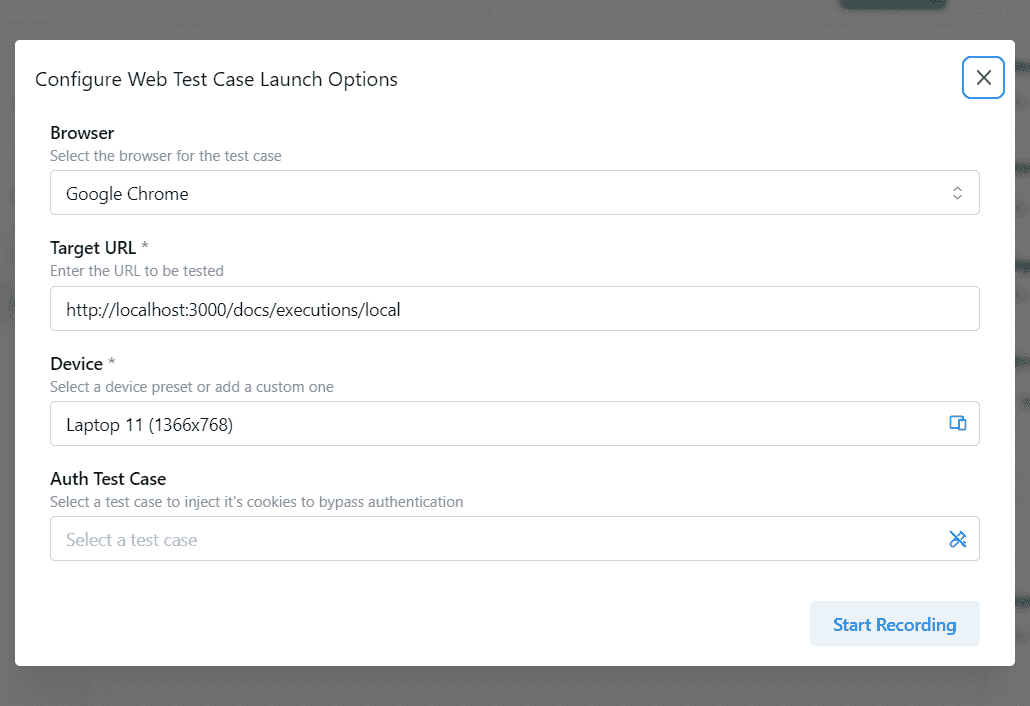

Configure Web Test Case Launch Options

Before recording starts, configure the environment in which the test will be recorded.

Browser

Select the browser for recording.

Example: Google Chrome

Target URL *

Enter the URL of the application to be tested.
The browser will open this URL when recording starts.

Device *

Select a predefined device preset or add a custom device configuration.

  • Defines screen resolution and viewport size
  • Example: Laptop 11 (1366 × 768)

Auth Test Case (Optional)

Select an authentication test case to inject session cookies before the browser loads.

  • Used to bypass login steps
  • Useful for recording authenticated user flows

After configuring the options, click Start Recording.

Browser Launch and Recording Session

Once recording starts:

  • A new browser window opens using the selected browser and device configuration
  • The browser navigates to the specified Target URL
  • Robonito begins capturing user interactions immediately
  • The browser is controlled by Robonito and dedicated to the recording session

Recorded User Actions

During the recording session, Robonito captures:

  • Mouse clicks
  • Text input and form submissions
  • Page navigation
  • UI element interactions
  • Supported validations

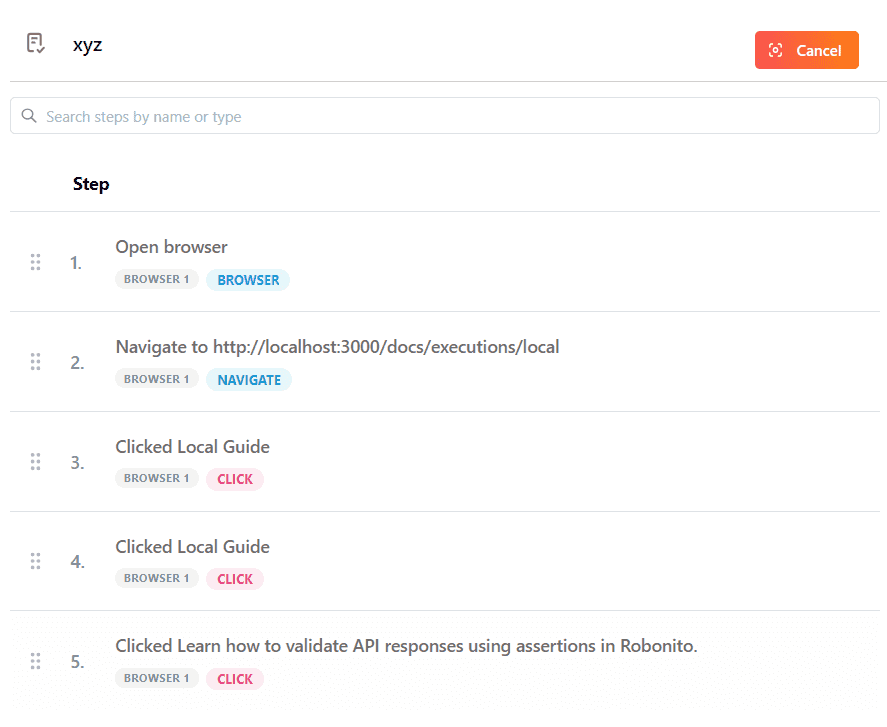

Each interaction is automatically converted into a test step in the test case. Recording steps

Automation Tools During Recording

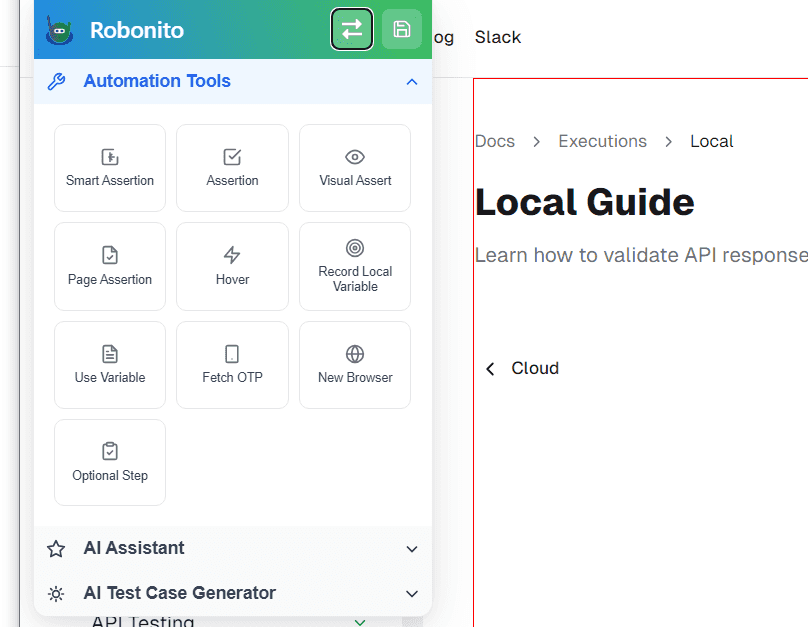

While recording is active, Robonito provides Automation Tools to enhance test reliability and flexibility. Automation Tools

Smart Assertion

Smart Assertion allows you to define validations using simple, human-readable descriptions. Instead of manually configuring assertion rules, you describe what should be true about the selected UI element, and Robonito automatically interprets and applies the appropriate validation logic. Learn Smart Assertion

Assertions

Assertions are used to validate expected behavior during test execution. Robonito allows you to add assertions while recording or after recording by editing a test step. Learn Assertion

Page Assertion

Page Assertions are used to validate page-level properties during test execution. They ensure that the application navigates to the correct page and that the page is loaded as expected. Learn Page Assertion

Visual Assert

Validates the visual appearance of UI elements or pages to detect layout or UI changes.

Hover

Records mouse hover interactions for menus, tooltips, and dynamic UI elements.

Record Local Variable

Captures values from the UI and stores them as variables for later use in the test.

Use Variable

Uses previously recorded variables in inputs, validations, or assertions.

Fetch OTP

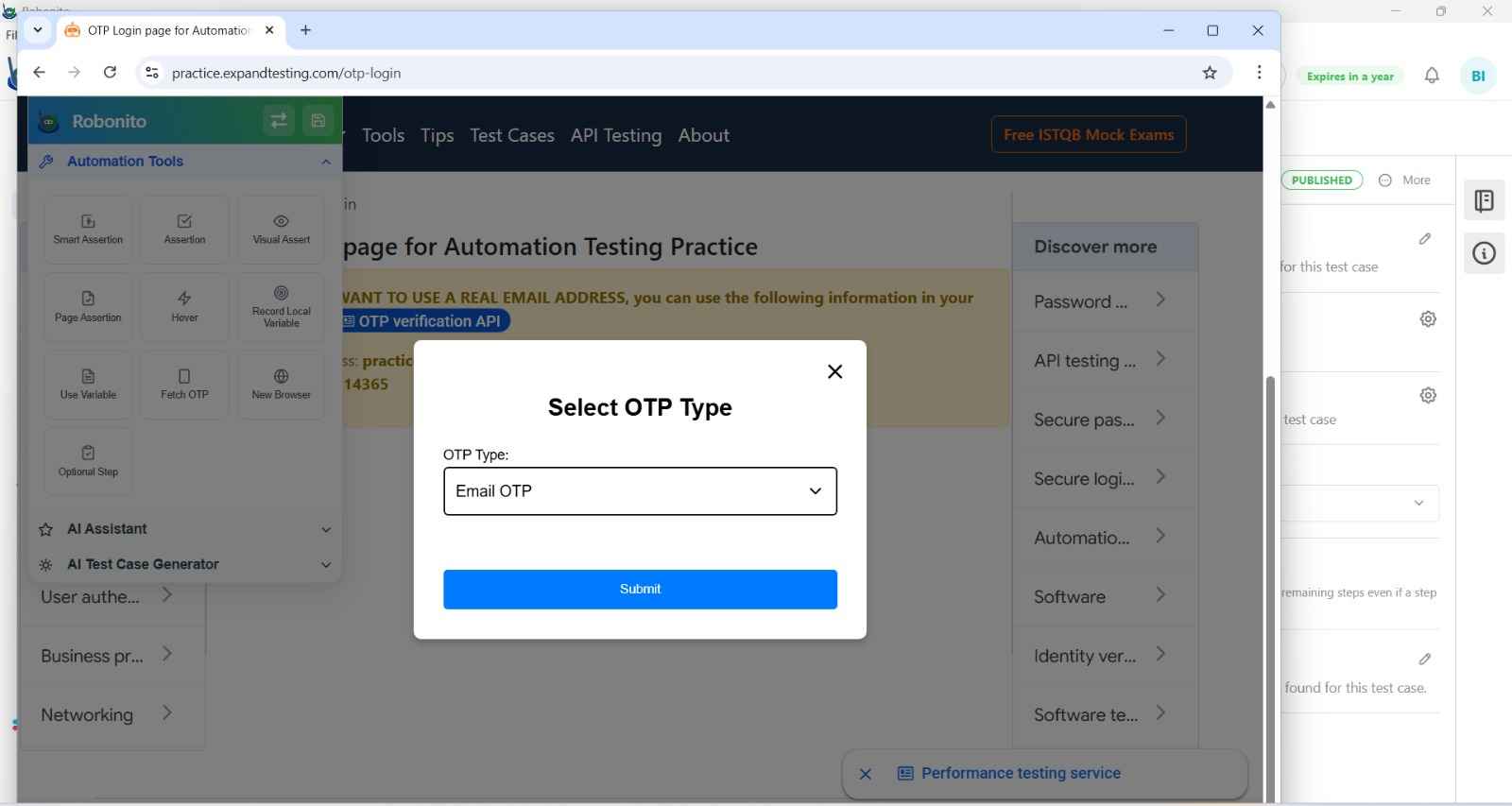

Automatically fetches one-time passwords during execution for OTP-based authentication flows.

New Browser

Opens a new browser instance during the test for multi-session or advanced workflows.

Optional Step

Marks a step as optional, allowing the test to continue execution even if the step fails.

Stopping the Recording

When all required actions are recorded:

  1. Stop the recording session manually
  2. All captured actions are saved as structured test steps
  3. The test case is ready for review, editing, and execution

Benefits of Recording-Based Test Creation

Recording in Robonito ensures:

  • Accurate representation of real user behavior
  • Faster test creation with minimal manual effort
  • Reliable and repeatable automation tests
  • Reduced maintenance through smart assertions and variables

This end-to-end recording workflow enables teams to quickly build robust and maintainable web automation tests.

Recorded Steps After Execution

After stopping the recording or completing an execution flow, Robonito converts all recorded user interactions into structured test steps.

These steps represent the exact sequence of actions performed during the recording session and can be reviewed, searched, reordered, or edited.

Step List Overview

Each recorded action is displayed as an individual step with clear labeling and metadata:

  • Step Number – Indicates the execution order
  • Action Description – Human-readable description of the interaction
  • Browser Context – Shows which browser instance performed the action (e.g., Browser 1)
  • Action Type Tag – Identifies the type of action (Browser, Navigate, Click)

Example Recorded Steps

  • Open Browser
    Initializes a new browser session for the test case.

  • Navigate to URL
    Opens the specified target URL in the browser.

  • Click Action
    Captures a user click on a specific UI element.

  • Additional Click or Navigation Actions
    Records subsequent user interactions in sequence.

Step Actions and Capabilities

Recorded steps can be:

  • Reordered using drag-and-drop
  • Searched using the step search bar
  • Edited to refine selectors or values
  • Enhanced with assertions, variables, or optional behavior

Each step is modular and reusable, enabling precise control over test execution.

Why Recorded Steps Matter

Structured recorded steps provide:

  • Full visibility into test execution flow
  • Easier debugging and maintenance
  • Flexibility to enhance tests after recording
  • Reliable and repeatable automation behavior
